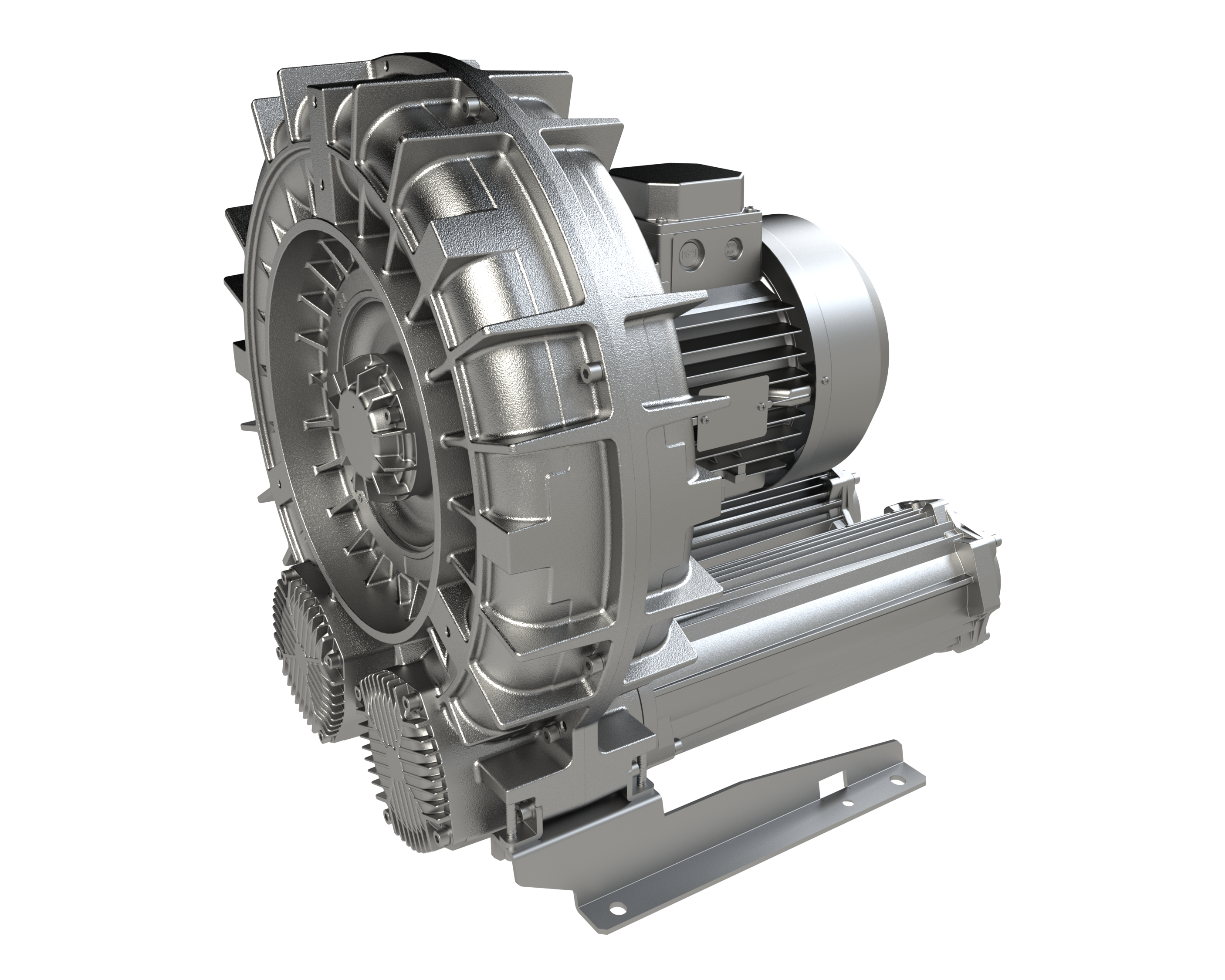

Single Impeller Side Channel Blower
Tapflo Gulf are proud to be an official distributor of FPZ in the GC Region.
Our Single Impeller Side Channel Blower treats air, gases and biogas during compression and aspiration phases.
The impeller-mounted motor shaft in the blowers delivers a smooth, pulsation-free airflow with minimal noise and no contact wear. Ideal for aeration, vacuum, and high-pressure applications. Engineered to provide efficient and reliable performance in moving air and gases across a wide range of industrial applications.
The blowers offer a compact, maintenance-free design, available in single and double-stage configurations. FPZ blowers deliver quiet operation with a very low decibel between 58-80db(A), energy savings and versatile mounting options, making them the ideal choice for clean, continuous airflow in demanding environments.
Typical Applications
Typical application for Side Channel Blowers include:
- Food & Beverage
- Water treatment
- Chemicals – pharmaceuticals
- Industrial – Paint, textiles, pulp, paper, plastic
- Oil & Gas
- Mining
Features & Benefits
Side channel blowers offer many features and benefits, including:
- Superior quality and reliability
- High efficiency impeller
- Low operating and maintenance costs
- Low vibration and low sound pollution
- Compact and lightweight system
- Easy to install
- Non-corrosive materials
- ATEX model availability
- EVO (low energy) model availability
- Wide range of accessories and components available
Variations
Single Stage (MS Model)
50Hz
Compression: Max Flow of up to 1024m3/h
Vacuum: Max Flow of up to 1012m3/h
60Hz
Compression: Max Flow of up to 1221m3/h
Vacuum: Max Flow of up to 1221m3/h
Double Stage (MD Model)
50Hz
Compression: Max Flow of up to 521m3/h
Vacuum: Max Flow of up to 521m3/h
60Hz
Compression: Max Flow of up to 629m3/h
Vacuum: Max Flow of up to 629m3/h

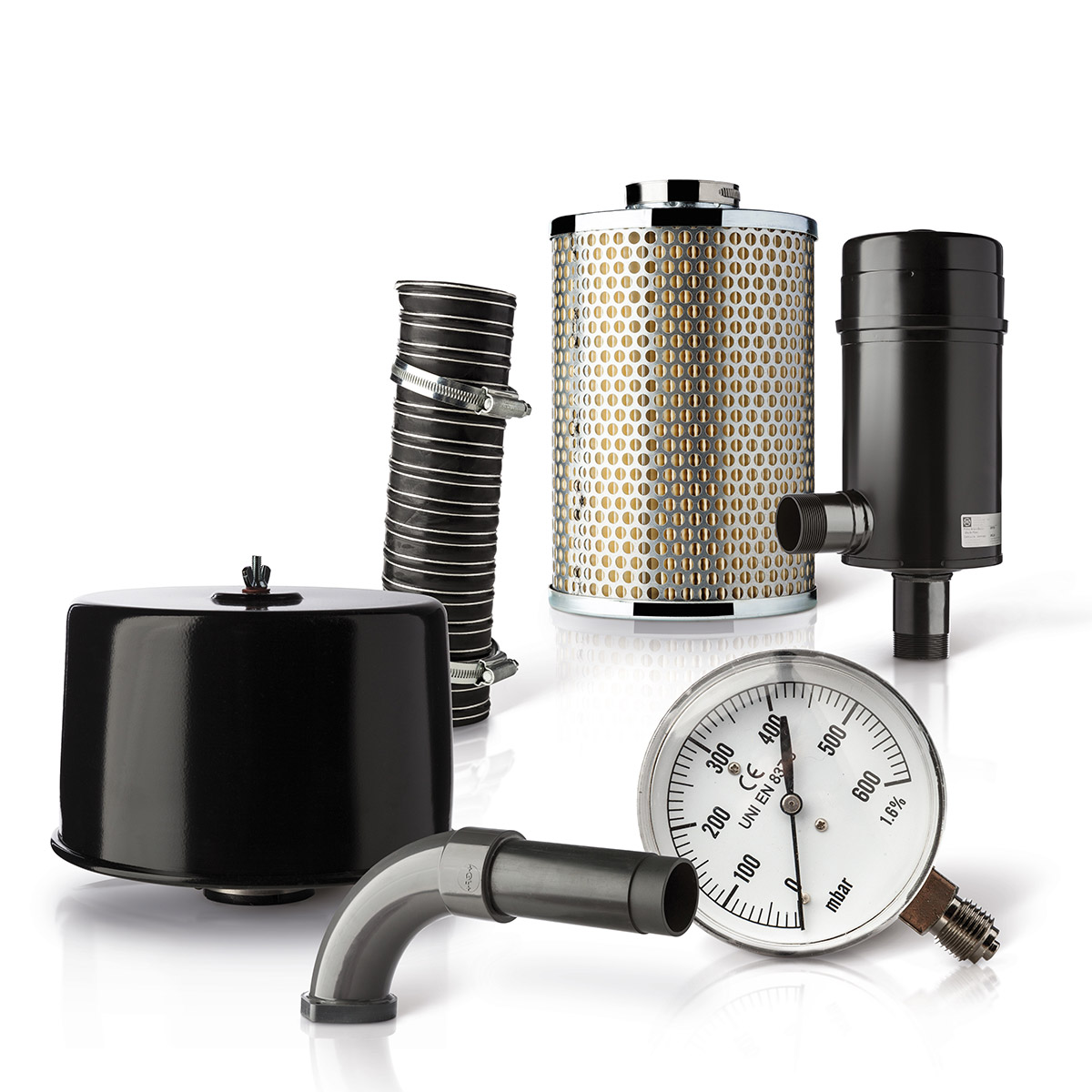

A wide range of matching accessories for blowers are available, including; pressure gauge, intake protection, suction filters and manifolds.
 ATEX
ATEX 2G and 3GD range – ATEX certification, high efficiency impeller, low noise machinery, easy to install and 2 years of warranty.
- ATEX 2G – Zone 1
- ATEX 3GD – Zone 2-22
- ATEX 3GD MOR – Zone 2-22
EVO
Contain Smartwave technology to reduce frequencies and uniform the noise, reducing sound pollution.
