Vacuum Assist System
Our Vacuum Assist System enhances the priming and pumping performance of high-viscosity fluids, even those with a viscosity of over 12,000 cPs. It is available in two delivery options: one with a dedicated air vacuum system utilising the venturi principle, and the other using the vacuum within the pump casing in an automatic system.
Typical fluid for our Vacuum Assist System:
- High-viscosity fluids
- Fluids with viscosities over 12,000 cPs
Specifications
| Item Number | Description | Capacitive Hose Rupture Detector Assy. | Pressure Sensor Hose Rupture Detector Assy. | Automatic Air Vacuum Assist System | Air Operated Vacuum Assist System |
| 51 | 90° Bend | X | X | X | X |
| 52 | Vent | X | X | X | |
| 200 | Hexagon Nipple | X | X | X | |
| 201 | Tee Connection | X | X | ||
| 202 | Hexagon Nipple | X | X | ||
| 203 | Adaptor | X | X | X | X |
| 204 | Air Supply Check Valve | X | |||
| 205 | Air Supply Connection | X | |||
| 206 | Air Supply Hose | X | |||
| 207 | Vacuum Flange | X |

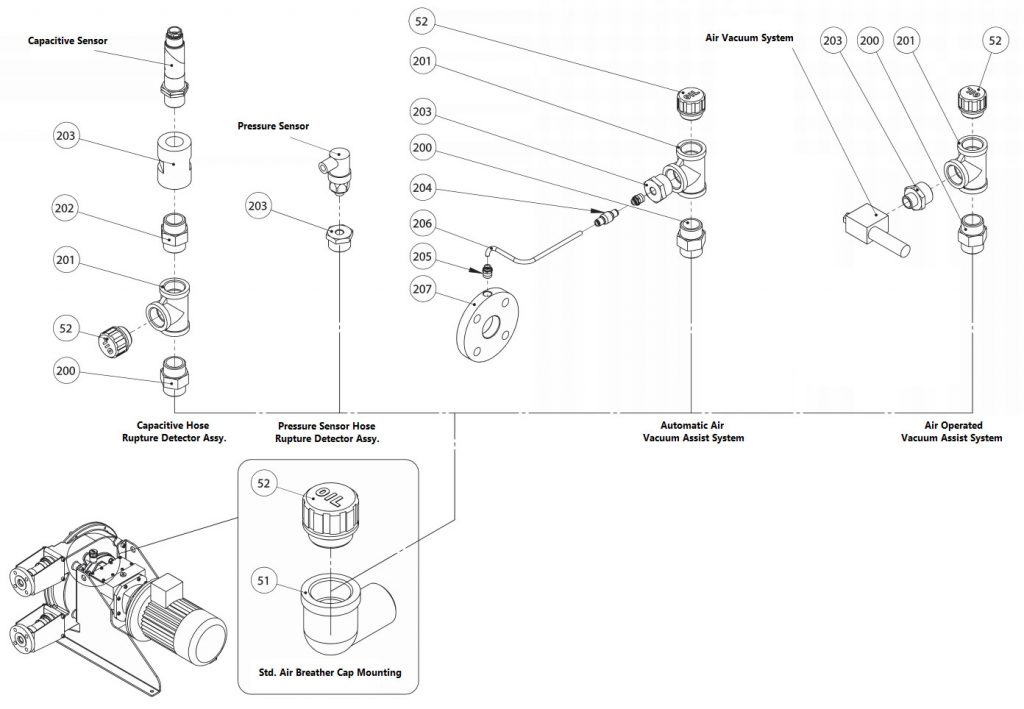

System Fittings
