All-In-One Flexible Impeller Pump
Max. Flow:
43.8m³/hr
Max. Head:
18m
Max. Temp:
100°C
Material:
Metal

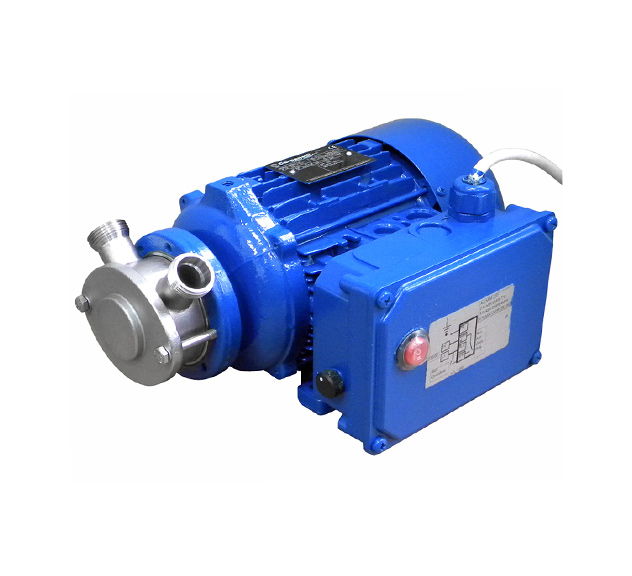

EP Flexible Impeller Pump
Our EP Flexible Impeller Pump is a Self-Priming Flexible Impeller Pump designed for transferring, filling and emptying applications. Renowned for its close-coupled design, this Flexible Impeller Pump features an integral on/off/reversing switch on the motor’s terminal box and is available in both single and 3-phase options. Additionally, terminal board connections are available on request for easy hard wiring into the installation. For added versatility this pump can be equipped with carrying handles (U & L shaped) or trolleys (Zinc Coated Ion & Stainless Steel 304), adding further flexibility as a utility pump.
Typical applications for our EP Flexible Impeller Pump:
- Food processing
- Dairy products
- Chemicals
- Wastewater containing solids
- Oils and lubricants
- Viscous fluids, sludges and slurries
- Soaps, creams and gels
- Paints, glues and detergents
Features & Benefits
- Solids passage up to 25mm
- Dry suction lift up to 6m
- Close-coupled design for efficient operation
- Integral On/Off/Reversing Switch for convenient control
- Single and Three-Phase variants
- Can be fitted with carrying handles or trolleys for increased portability and usability
- Pump heads constructed from AISI 304/316 for enhanced durability and corrosion resistance
- Different sizes, types and orientations of connections can be configured for diverse installation needs
- Manual & Spring-Loaded By-Passes for ease of use
Specifications
| Materials | Stainless Steel AISI 304/316L |
| Max Capacity | 730 l/min |
| Max Pressure | 32m |
| Self Priming | Yes |
| Max Solids Size | Up to 25mm |
| Max Temperature | 100ºC |
