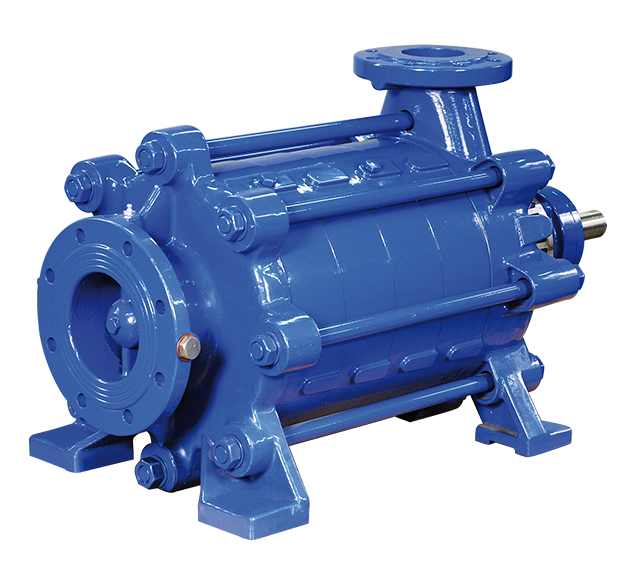

Heavy Duty Multistage Centrifugal Pump
Our Heavy Duty Multistage Centrifugal Pump is designed to deliver high pressures while maintaining optimal flow rates. It’s unique design, featuring multiple impellers, makes it a versatile choice for a wide range of applications. The rigidly coupled construction of this Centrifugal Pump allows for 2 different configurations: Side-Entry or Vertical, ensuring adaptability for various installation needs. Furthermore, the inlet configurations include both Split-Case and End-Suction, offering added flexibility. This pump is available in a range of materials, such as Cast Iron, Stainless Steel and Alloy, ensuring suitability for a diverse range of liquids.
Typical industries for our Heavy Duty Multistage Centrifugal Pump:
- Water Supply & Treatment
- Agricultural Irrigation & Drainage
- Heating, Cooling & Ventilation
- Chemical
- Oil
- Energy
- Iron & Steel
- Mining
- Food & Beverage
- Fire Extinguishing
Features & Benefits
- ATEX-rating available for use in hazardous environments
- Pump and motor shafts are separated by either rigid coupling or through slide fit shaft, resulting in axial and radial forces being absorbed by the electric motor bearings
- The rigid coupling also gives a lighter and smaller construction
- Flanges conform to EN1092-2/PN 16, 40 or 63. (EN 1092-1/PN 16, 40 or 63 for steel/stainless-steel casing). ANSI/ASME flanges are also available
- Dynamically and statically balanced impellers, in accordance with ISO 1940 Grade 6.3
- Impellers utilise balancing holes to balance axial thrust
- Bearings used are grease-lubricated ball bearing types
- Sleeve bearings are used on the End Suction Multi-Stage Centrifugal Pump
Specifications
| Materials | Cast Iron, Stainless Steel AISI 316L, Alloy |
| Max Capacity | 1,000,³/hr |
| Max Pressure | 550m |
| Self Priming | No |
| Max Temperature | 140ºC |
