Low Pressure Peristaltic Pump
Max. Flow:
10m³/hr
Max. Head:
40m
Max. Temp:
80°C
Material:
Metal

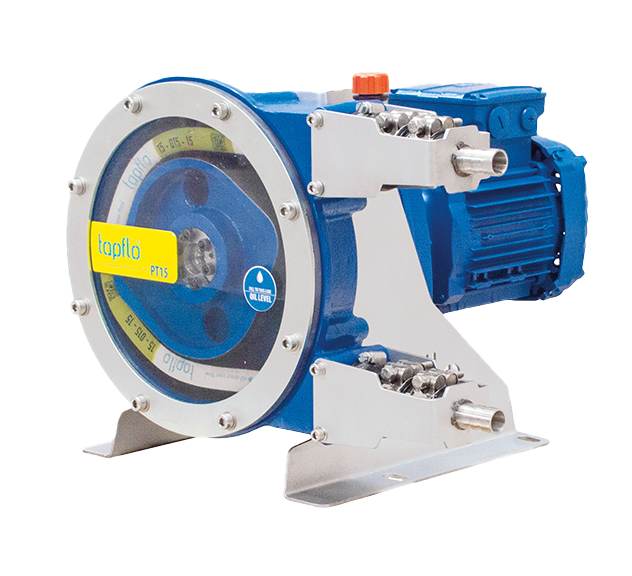

High Pressure Peristaltic Pump

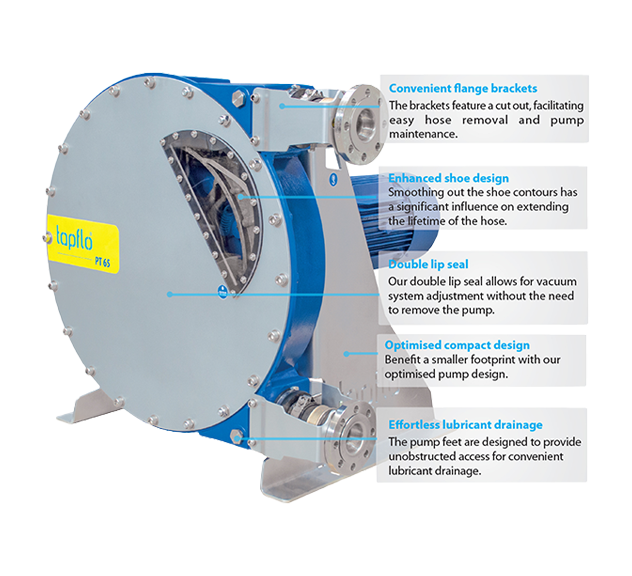

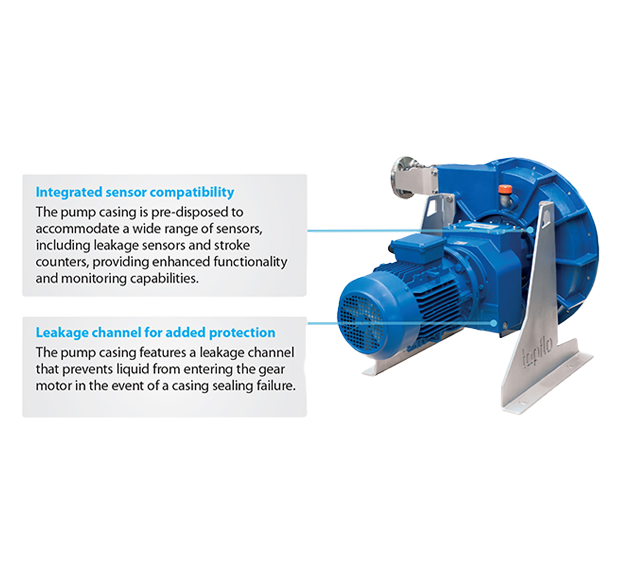

Our High Pressure Peristaltic Pump is a high-performance solution designed for the delicate handling of fragile and shear-sensitive fluids in high-pressure industrial applications. This pump efficiently handles abrasive, corrosive and viscous substances containing solid particles. Our High Pressure Peristaltic Pump features a shoe design that generates friction and heat while compressing the hose, requiring constant lubrication with glycerin to dissipate the heat effectively. For increased versatility, an ATEX-rated variant of this high-pressure pump is available for use in hazardous environments.
Typical applications for our High Pressure Peristaltic Pump:
- Paint manufacturing and transfer
- Wastewater treatment and management
- Food processing and production
- Paper mills for pulp and paper transfer
- Chemical handling and dosing
- Biogas production and processing
- Recycling processes
- Mining operations
- Building and construction industries
High Pressure Peristaltic Pump Video
Overview of our upgraded Peristaltic Pump range:
Features & Benefits
- The PXT model of this pump is the ATEX-rated variant
- Minimal downtime and simple maintenance requirements with the PT pump as there are few components with no seals required
- User-friendly operation
- Cost effective solution
- Minimal wear thanks to its turbulence-free performance
- Customisable pump connections with multiple types and orientations available
- Self-priming up to -0.9 Bar
- Capable of handling high viscosity liquids up to 100,000 cP
- Reversible operation
- Precise dosing and adjustable flow
- Safe to run dry
Specifications
| Materials | Nodular Cast Iron |
| Max Capacity | 100m³/hr |
| Max Pressure | 150m |
| Self Priming | Yes |
| Max Temperature | 80ºC |
| Viscosity | 100,000 cPs |
Options & Variations
-
- Peristaltic Pump Pulsation Dampener
-
- Hose Leak Detector
-
- Built-In Frequency Inverter
-
- Revolution Counter
-
- Vacuum System
-
- Trolleys
Available Gear Motors:
| Pump Size | Motor Power (kW) | Pump Speed (rpm) |
| PT 5 | 0.25 | 11, 15, 19, 23 |
| PT 10 | 0.25
0.37 0.55 |
11, 15, 19, 23
15, 23, 25, 35 43, 47, 61 |
| PT 15, PT 20 | 0.37
0.55 |
15, 23, 25, 35
43, 47, 61 |
| PT 25 | 1.5
2.2 |
23, 30, 35, 44, 50
60 |
| PT 32, PT 38 | 1.5
2.2 |
20, 25, 31
34, 44, 50, 61 |
| PT 40 | 2.2
3 4 |
25, 31, 33, 41
47 54, 63 |
| PT 51, PT 60 | 5.5
7.5 |
26
20, 33, 38, 47, 55, 60 |
| PT 65, PT 80, PT 80L | 7.5
11 15 |
20
20, 26, 32, 38 22.5, 26, 32, 38 |
| PT 100 | 15
18.5 22 |
18, 24
18 24, 31 |
| PT 125 | 22
30 37 |
20
25, 32 20, 32, 38 |
