Peristaltic Pump Pulsation Dampener

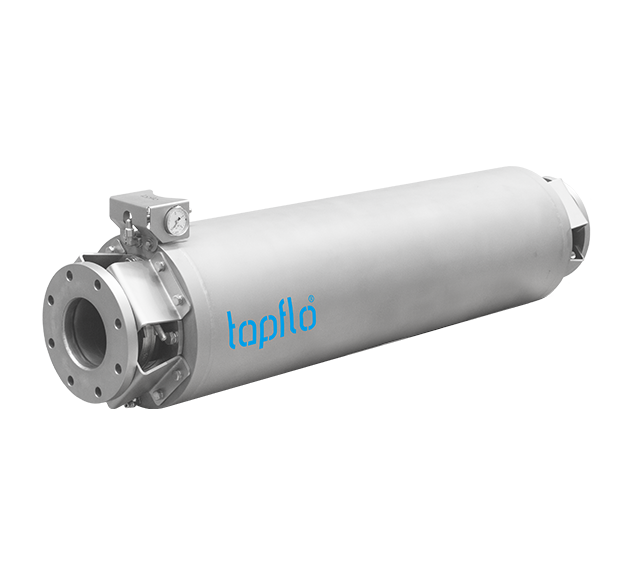

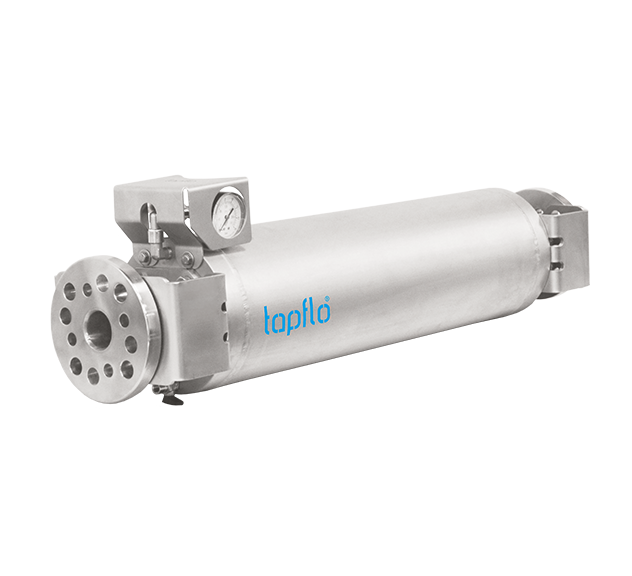

Our Peristaltic Pump Pulsation Dampener is a specialised solution designed to seamlessly integrate with our Peristaltic Pump range. Manufactured with a Stainless Steel pressure housing and a reinforced rubber hose, this dampener significantly reduces vibrations, hammering and pulsations within your piping system by up to 80%, ensuring a more consistent linear flow. The pulsations that are commonly associated with Peristaltic Pumps are as a result of the shoes releasing those hose after compression on the discharge side, causing pressure drops along the discharge line and unwanted vibrations and hammering. This Pulsation Dampener minimises these pulsations. Notably, our Pulsation Dampener can be used with various other pump types and is available in both horizontal and vertical installations.
Typical industries for our Peristaltic Pump Pulsation Dampener:
- Water Treatment
- Ceramic
- Mining & Quarries
- Building & Construction
- Chemical
- Food & Beverage
- Paint, Pulp & Paper
- Agriculture & Biogas
Features & Benefits
- Handles abrasive and corrosive liquids with particles up to 20% of the inner hose diameter
- ATEX-rated
- Controls pulsations which result in minimal wear and tear of the system
- The inner part of the hose is the only liquid contact part resulting in simplified cleaning routines
- Although this Pulsation Dampener has been designed for Peristaltic Pumps, they can also be used with a range of different pump types
- Complies with strict standards as set by the European PED Directive 2014/68/EU
Specifications
| Technical Data | DPT 40 | DPT 65 | DPT 100 | DPT 125 |
| Hose pump size | PT 25, PT 32, PT 38, PT 40 | PT 51, PT 60, PT 65 | PT 80, PT 80L, PT 100 | PT 125 |
| Max air pressure (bar/psi) | 15/217 | 10/145 | 10/145 | 10/145 |
| Max outlet pressure (bar/psi) | 15/217 | 10/145 | 10/145 | 10/145 |
| Min temperature (°C/°F) | -20/-4 | -20/-4 | -20/-4 | -20/-4 |
| Max temperature (°C/°F) | 80/176 | 80/176 | 80/176 | 80/176 |
| Dampener weight | 25/55 | 55/121 | 87/192 | 86/190 |
Options & Variations
-
- Modular Flange
-
- Hygienic Fittings
-
- Tri-Clamp Connections
Modular Flange (standard):
- EN 1092-1 PN16 or ANSI 150 flange
Hygienic Fittings:
- DIN 11851
Tri-Clamp Connections:
- DIN 32676 or ASME BPE clamp (DIN 2676)
