Aseptic Diaphragm Pump
Max. Flow:
30m³/hr
Max. Head:
80m
Max. Temp:
110°C
Material:
Metal

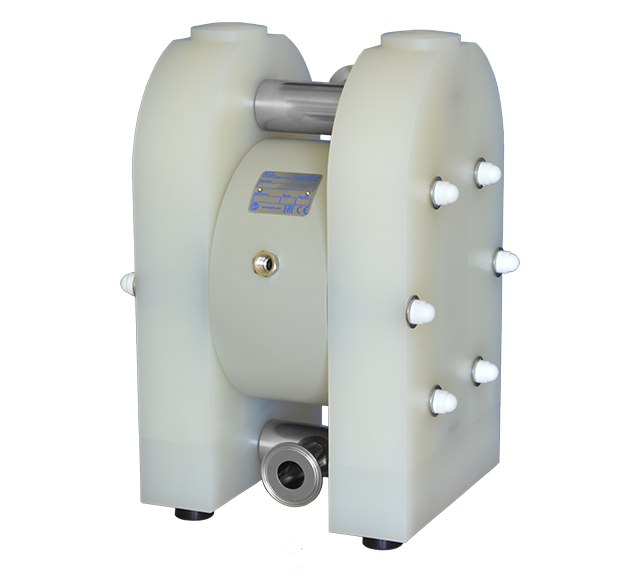

Pharmaceutical Grade Diaphragm Pump
Our Pharmaceutical Grade Diaphragm Pump, which is USP VI-compliant, meets the most rigorous cleanliness standards demanded by the Pharmaceutical industry. This Pharmaceutical Pump combines our innovative Diaphragm Pump design with tailored features for Pharmaceutical applications. Designed with only 3 parts in contact with the pumped fluid, this pump facilitates easy service and maintenance, significantly reducing contamination risks. Furthermore, this pump offers a wide performance range, from metering and dosing to general transfer, with capacities ranging from 60 – 570l/min, discharge pressures up to 8 Bar, and solids passage up to 15mm.
Typical industries for our Pharmaceutical Diaphragm Pump:
- Pharmaceutical
- Biotech
Features & Benefits
- Simple design
- Easily maintained due to very few components within the design
- Sanitary design with smooth internal surfaces
- USP VI approved materials
- FDA-approved
- ATEX-rated
Specifications
| Materials | HDPE, PTFE |
| Max Capacity | 570 l/min |
| Max Pressure | 160m |
| Self Priming | Yes |
| Max Solids Size | 15mm |
| Max Temperature | 70ºC |
| Viscosity | 0-200+ cSt |
