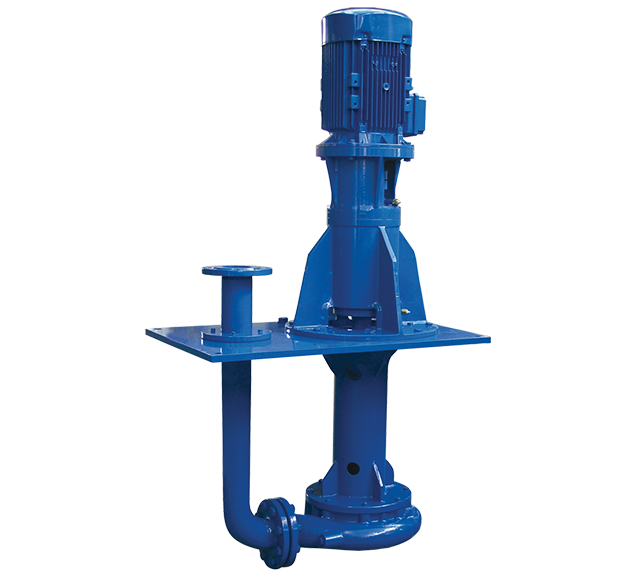

Vertical Sump Process Pump
Max. Flow:
400m³/hr
Max. Head:
220m
Max. Temp:
95°C
Material:
Metal
Wastewater Process Pump
Our Wastewater Process Pump has been specifically designed to handle the abrasive and corrosive challenges posed by wastewater. This pump delivers superior performance in handling raw sewage as well as liquids containing fibres and solids. With versatile impeller options, this pump is ideal for transferring wastewater from treatment plants to discharge points or collection basins, to treatment facilities. With 18 basic sizes available, this pump delivers exceptional performance in both industrial and domestic wastewater applications.
Typical fluids handled by our Wastewater Process Pump:
- Domestic & Industrial Wastewater
- Raw sewage
- liquids with fibres
- Liquids with solids
- Abrasive and corrosive liquids
Features & Benefits
- ATEX available
- Available Impellers: Enclosed, Semi-Open and Vortex
- ‘Back pull’ design, allowing for easy maintenance as complete bearing assembly, impeller and casing cover can be removed without dismantling the volute casing from the pipework. Spacer coupling also allows disassembly of the rotor without removing the electric motor
- Flanges conform to EN1092-2/PN 10 or PN16. (EN 1092-1/PN 10 or PN 16 for steel/stainless-steel casing). ANSI/ASME flanges are also available
- Dynamically and statically balanced impellers, in accordance with ISO 1940 Grade 6.3
- Impellers utilise balancing holes to balance axial thrust
- Vertical mounting allows for minimal footprint for small installation areas
- Grease-lubricated bearings
Specifications
| Materials | Cast Iron, Stainless Steel AISI 316L, Alloy |
| Max Capacity | 1,600m³/hr |
| Max Pressure | 95m |
| Self Priming | Yes |
| Solids Handling | Yes |
| Max Temperature | 110ºC |
Options & Variations
-
- Horizontal Wastewater Process Pump
-
- Vertical Sump Wastewater Pump
Tapflo Wastewater Process Pump variants are available as follows:
• TWPP: Tapflo Wastewater Process Pump
• TWPP-S: Tapflo Wastewater Process Pump – Sump
• TWPP-V: Tapflo Wastewater Process Pump – Vertical
