Tapflo Gulf are proud to be the official distributor of Nova Rotors in the GCC region.

Our Hopper Pump is a specialised solution designed to handle substances with high viscosities and significant solids content, surpassing the capabilities of standard Progressive Cavity Pumps in processing challenging liquids. Featuring Auger Feed Screws, this EHEDG-certified Hopper Pump efficiently handles industrial and food-grade liquids. With options including close-coupled or bearing housing supported variations, this pump delivers increased versatility. Additionally, the standard rectangular shape of the hoppers is customisable to suit your specific installation requirements.

Typical applications for our Hopper Pump:

Sewage Sludge
Water Treatment
Industrial Sludge
Chemical
Pulp & Paper
Agriculture
Petro-chemical
Marine

Features & Benefits

ATEX available for use in hazardous environments
Patented pin-type joint for simple maintenance and reliable performance
Hydraulic balancing of the joints makes it more resistant to the pump body pressure
Ample suction sections allows for superior driving capacity and handling of viscous substances
Anchor down baseplate
Various drive shaft options available dependant on operational needs
Outlet pipe manufactured from a range of material options
Designed to facilitate convoy of the product to the hydraulic section
Abrasion-resistant rotors and stators
Various seal systems available including packing seal with our without flushing
Connection via the pin to the drive or the bearing housing enables reversible operation

Specifications

Materials	Stainless Steel AISI 316L, Carbon Steel
Max Capacity	110m³/hr
Max Pressure	480m
Self Priming	No
Solids Concentration	18%
Max Temperature	150ºC

Options & Variations

DHS Model: features a rectangular hopper and oversized auger for highly viscous materials with up to 28% solids concentration that do not bridge
DHP Model: has a wide throat hopper with a bridge breaker shaft and auger, suitable for materials that tend to bridge or have solids, like fruits and doughs

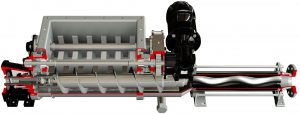

DHB Model: has a wide throat hopper with a double bridge breaker shaft and enlarged auger, suitable for highly viscous materials with up to 35% solids concentration that have a tendency to bridge

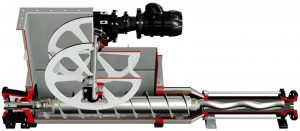

DHSB Model: similar to the DHS Model, this model is fitted with a special “B” Module for non-flowing materials with solids concentrations up to 40%, beneficial for products that tend to plasticise
DHS-T Model: similar to the DHS Model, also featuring the special “B” Module

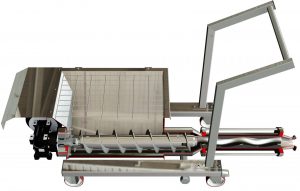

DHE Model: compact design, trolley mounted and designed for use in the wine industry, suitable for pumping crushed grapes with or without stems. Safety features and level probes can be added to protect against dry-running
