Vertical Progressive Cavity Pump

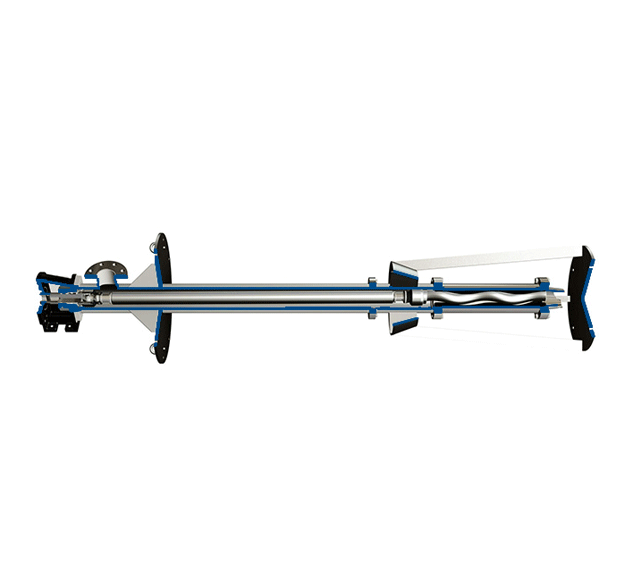

Our Vertical Progressive Cavity Pump forms part of our Progressive Cavity Pump range and is designed to handle both viscous and non-viscous abrasive and aggressive media. Available in short or long designs, ensuring versatility for applications, including pumping from wells or deep tanks. For flexible installation, the short version uses only the mounting plate, while the long or extended version includes a support and guide cone to reduce vibrations in deep immersion applications. Both versions are close-coupled and feature a suction nozzle for optimal priming, ensuring a smooth passage of process media into the pump.
Typical applications for our Vertical Progressive Cavity Pump:
- Sewage Sludge
- Water Treatment
- Industrial Sludge
- Chemical
- Pulp & Paper
- Agriculture
- Petro-chemical
- Marine
Features & Benefits
- ATEX available
- Patented pin-type joint for simple maintenance and reliable performance
- Hydraulic balancing of the joints makes it more resistant to the pump body pressure
- Ample suction sections allows for superior driving capacity and handling of viscous substances
- Anchor down baseplate
- Various drive shaft options available dependant on operational needs
- Outlet pipe manufactured from a range of material options
- Designed to facilitate convoy of the product to the hydraulic section
- Abrasion-resistant rotors and stators
- Various seal systems available including packing seal with our without flushing
- Connection via the pin to the drive or the bearing housing enables reversible operation
Specifications
| Materials | Stainless Steel AISI 316L |
| Max Capacity | 110m³/hr |
| Max Pressure | 120m |
| Self Priming | Yes |
| Max Temperature | 110ºC |
