Dewatering Pump
Max. Flow:
16m³/hr
Max. Head:
18m
Max. Temp:
40°C
Material:
Metal, Plastic

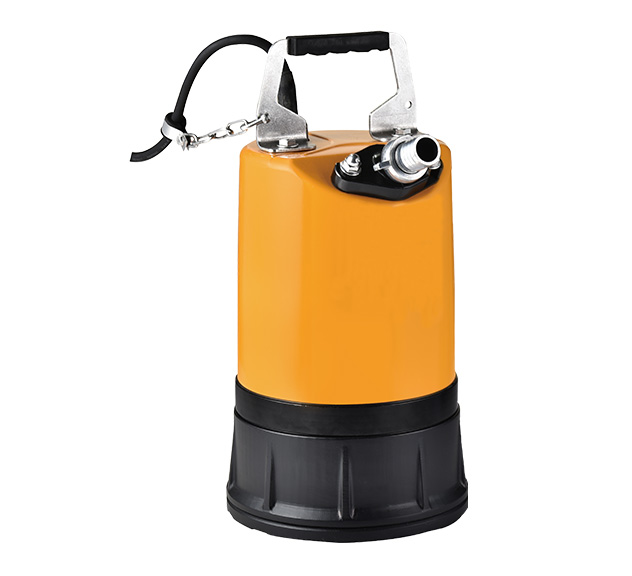

Heavy Duty Dewatering Pump
Our Heavy Duty Dewatering Pump is a Centrifugal Pump designed to deliver reliable performance in the most demanding Mining, Quarrying and Construction environments. Constructed with rigid Cast Iron, this pump is a versatile solution in water removal applications. Featuring a mechanical seal capable of withstanding high pressure, this pump can be submerged at greater depths. The semi-open impeller, manufactured from high Chrome Alloy and paired with a wear plate made of ductile iron, ensure this pump delivers prolonged performance and resistance to abrasive materials. The motor housing, with a built-in discharge channel, facilitates efficient motor cooling. Models with outlet sizes up to 80mm provide dual position outlet ports, allowing operators to position the discharge hose horizontally or vertically, preventing folding or bending.
Typical handled fluids for our Heavy Duty Dewatering Pump:
- Spring water
- Rainwater
- Groundwater
- Sand-carrying water
Features & Benefits
- Cast Iron Construction: Ensures reliable and problem-free operation, providing a robust and durable pump solution
- High-Pressure Resistant Mechanical Seal: Allows for maximum submersion depth, enhancing versatility and adaptability to different water pumping tasks
- Semi-Open Impeller with Ductile Iron Wear Plate: Made of high chrome alloy, withstands abrasive materials, ensuring exceptional durability and efficiency
- Effective Motor Cooling: The motor housing with discharge channel facilitates efficient motor cooling, enhancing overall performance and extending motor life
- Dual Position Outlet Ports: Models with outlet sizes up to 80mm offer flexible hose placement options (horizontal or vertical) to prevent hose folding or bending, providing ease of use and adaptability
- BSP Thread Adaptor: Included with applicable models, ensuring versatile hose connections for seamless installation and compatibility with various setups
- Hermetically Sealed Motor with Thermal Protection: Ensures safety and prevents overheating, providing reliable and safe pump operation
- Automated Water Level Control (E-marked models): Sizes SB2-22 to SB4-37 can be equipped with a level control sensor, offering energy-saving automated water level control, eliminating the need for constant monitoring
- Versatile Applications: Suitable for various applications, such as mining, quarrying, construction, tunnelling, industrial processing and rental fleets, providing a reliable solution for diverse water pumping needs
Specifications
| Materials | Cast Iron |
| Max Capacity | 147m³/hr |
| Max Pressure | 40m |
| Self Priming | Yes |
| Max Solids Size | Up to 19.5mm |
| Max Temperature | 40ºC |
| Max Water Depth | 25m |
